Модель :
TKS60Импортный калибр (DN) :
25Экспортный калибр (DN) :
25Номинальный расход (м³/ч) :
0.6Rated flow (L/h) :
23Скорость двигателя (об/мин) :
2850Мощность двигателя (кВт) :

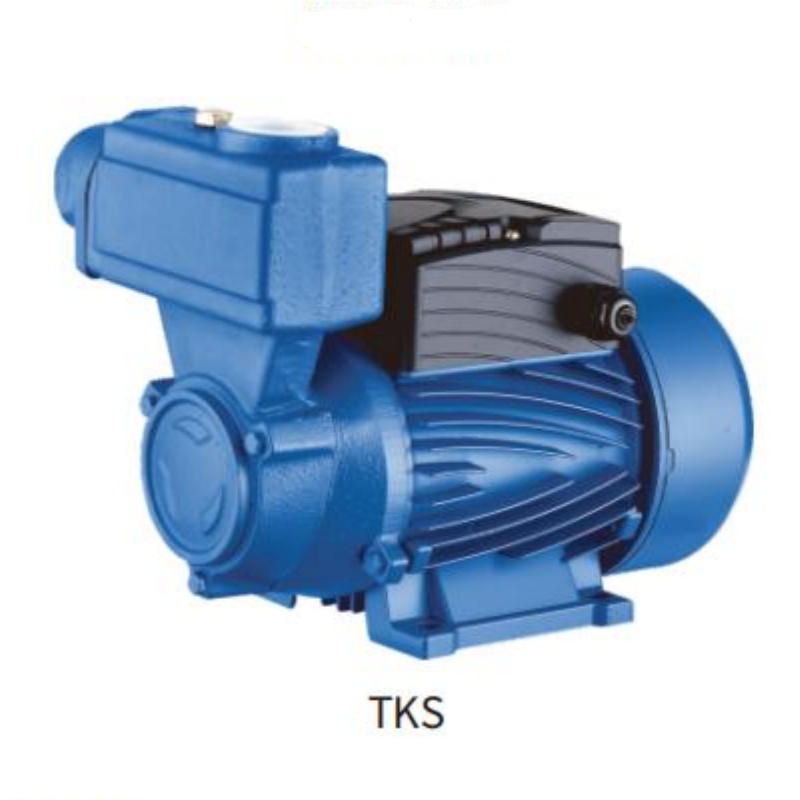

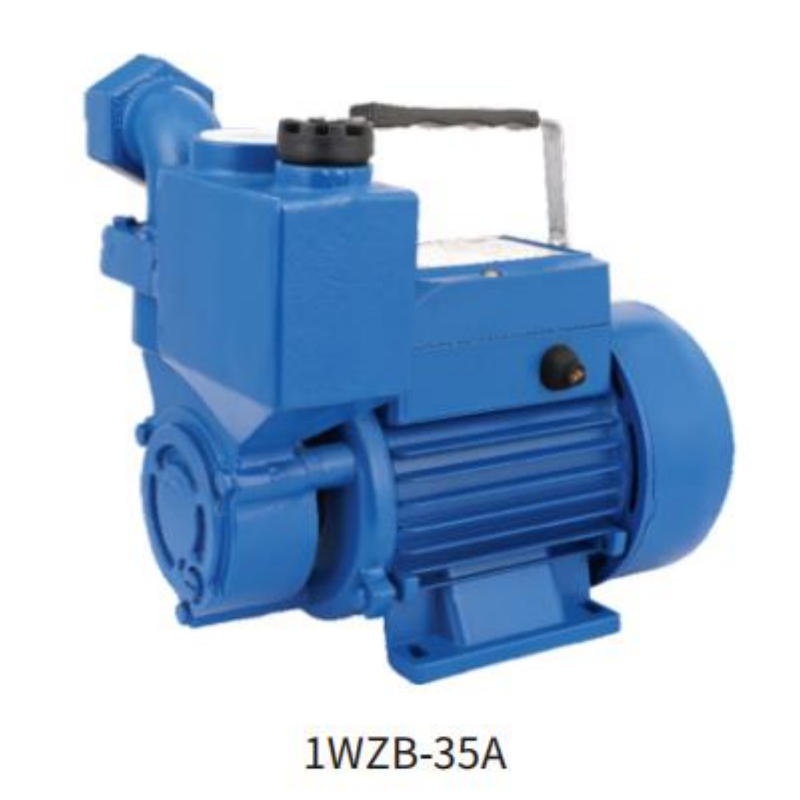

0.371WZB, TKS Series Peripheral Pumps
Application
1WZB, TKS series are suitable to pump clean water,or pump clean liquid andnon-aggressive chemical fluis, They are suitable for domestic water,watertower supply,well water lifting and in particular for delivering water incombination with small automatic pressure sets.The pumps shall be installedin enclosed places,or at least inclement weather.
Technical Data
Two-pole induction motor | 2850RPM |
Insulation | Class B |
Protection | IP44 |
Continuous service | S1 |
Liquid temperature | up to 60°C |
Ambient temperature | up to 40°C |
Total suction | 9m |
